Accessory Ball Snap Catch 14

2.858.12

Ball snap catch accessory used a quick locking device for doors

Clear
ABS14P , ,

Description

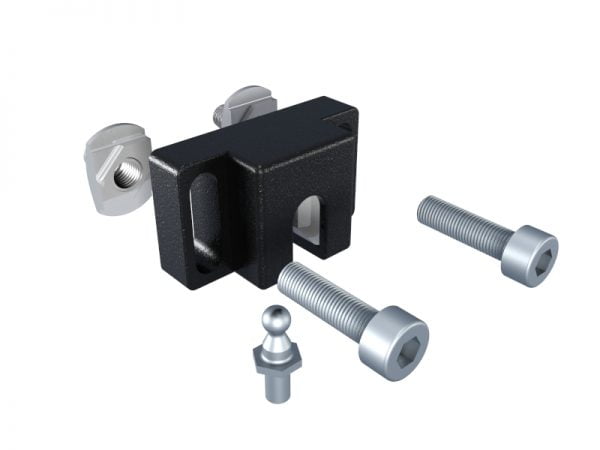

You can use our ball snap catch accessory as a quick locking device for doors. It is easily attached to any structure using two ISO 4962 socket head cap screws and two t-nuts. You will receive all necessary bolts when you purchase as a kit including the bracket for the catch. The ball snap catch is adaptable to the panels being used.


Downloads

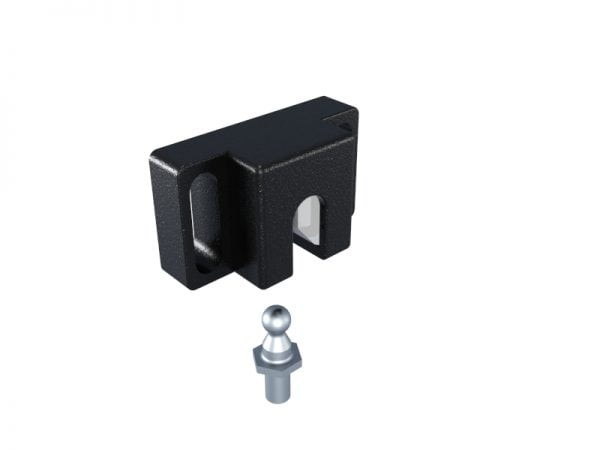

To download a CAD drawing of ABS 141 (Ball Snap Catch) click here

To download a CAD drawing of ABS 142 (Bracket for Catch) click here

To download a PDF drawing of ABS click below –

ABS-14

ABS-142

Specification

Materials:

Glass-fibre reinforced polyamide (PA) Please note all screws and fasteners are zinc plated steel.

Finish:

Structured

Mounting Screw:

M8

Additional information

Weight N/A
