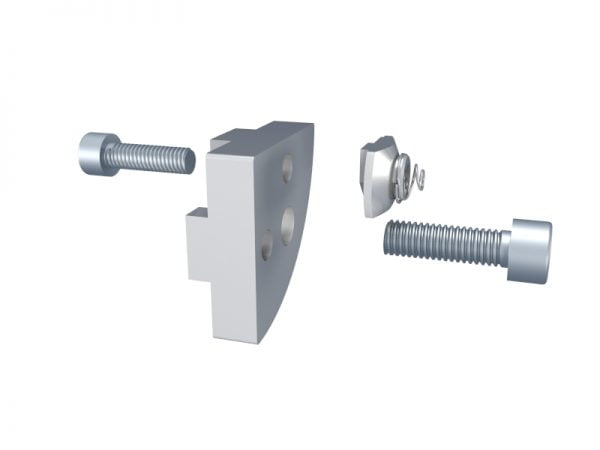

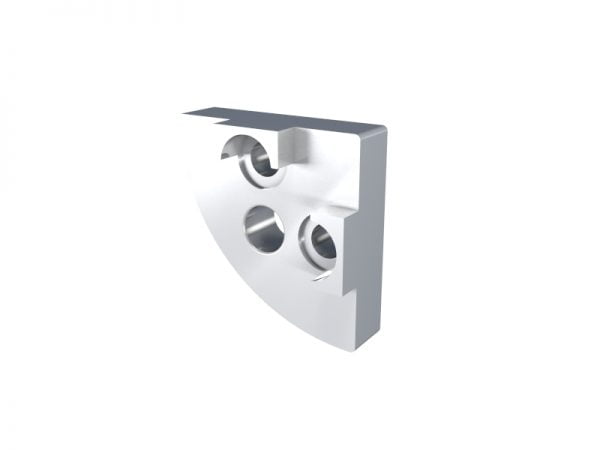

Connector Standard Quadrant 40 are used to assemble profile structures and are employed in almost all of our quantum 3 applications. This connector comes with a clear anodized finish and is used on our aluminium quadrant profile. It can be purchased in a kit including one standard 40 quadrant connector and the necessary screws and fasteners for construction.
To download a CAD file of CSQ 40 click here
To download a PDF drawing of CSQ 40 click here
