I5 1020 (Full 3m Length)

15.00

I5 1020 Standard

I5 1020 , , , ,

Description

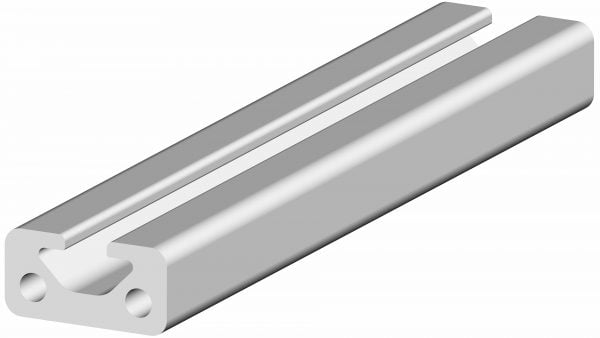

10mm by 40mm standard profile with an M5 slot, available in a 3m length or cut to your required length. This is a full 3m length. To cut to your required length click here.

Please note there is a 5-7 working day lead time on this profile.

To download a PDF drawing of I5 1020 click here

To request a CAD file please email sales@quantum-3.com

Specification

Materials:

Aluminium Alloy (AlMgSi0, 5 F 25)

Finish:

Clear Anodized

Thread Size:

M5

Area Moment of Inertia Ix (in cm4):

0.12

Area Moment of Inertia Iy (in cm4):

0.53

Additional information

Weight 0.35 kg
Dimensions 3 cm
