I5 20203N (Full 3m Length)

16.50

I5 20203N Standard

I5 20203N , , , ,

Description

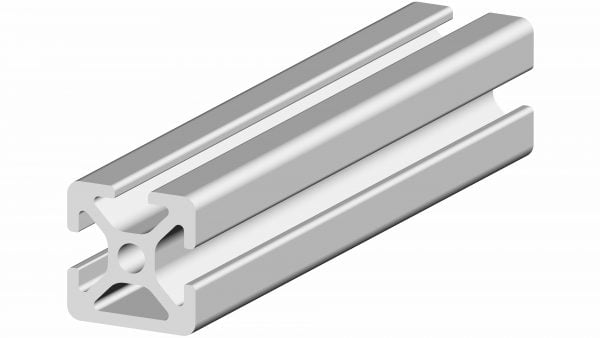

20mm by 20mm standard profile with an M5 slot and 3 sides open, available in a 3m length or cut to your required length. This is a full 3m length. To cut to your required length click here.

Please note there is a 2-3 week lead time on this profile.

To download a PDF drawing of I5 20203N click here

To request a CAD file please email sales@quantum-3.com

Specification

Materials:

Aluminium Alloy (AlMgSi0, 5 F 25)

Finish:

Clear Anodized

Thread Size:

M5

Area Moment of Inertia Ix (in cm4):

0.82

Area Moment of Inertia Iy (in cm4):

0.75

Additional information

Weight 0.52 kg
Dimensions 3 cm
