I8 1640 (Full 3m Length)

35.28

I8 1640 Standard

I8 1640 , , , ,

Description

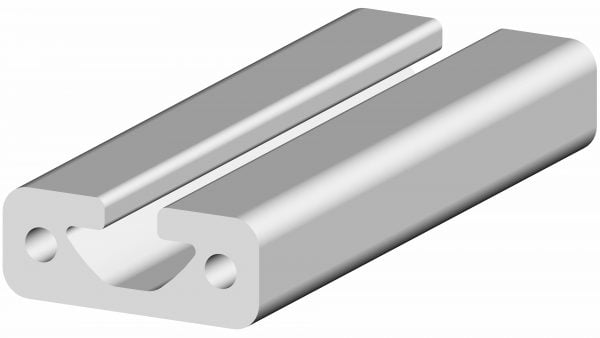

16mm by 40mm standard profile with an M8 slot, available in a 3m length or cut to your required length. This is a full 3m length. To cut to your required length click here.

Please note there is a 5-7 working day lead time on this profile.

To download a PDF drawing of I8 1640 click here

To request a CAD file please email sales@quantum-3.com

Specification

Materials:

Aluminium Alloy (AlMgSi0, 5 F 25)

Finish:

Clear Anodized

Thread Size:

M8

Area Moment of Inertia Ix (in cm4):

1.09

Area Moment of Inertia Iy (in cm4):

6.95

Additional information

Weight 1.16 kg
Dimensions 3 cm
