I8 4040E45° (Cut Length)

POA

I8 4040E45° (Cut Length)

I8 4040E45å¡X , , , ,

Description

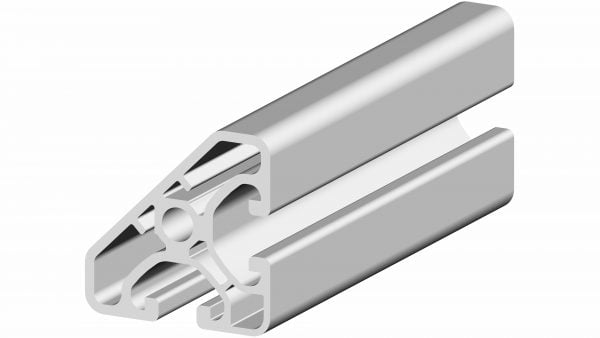

40mm by 40mm economy profile with an M8 slot and angled surface, available in a 6m length or cut to your required length. This is a cut length. For a full 6m length click here.

Please note there is a 2-3 week lead time on this profile.

To download a PDF drawing of I8 4040E45° click here

To request a CAD file please email sales@quantum-3.com

Specification

Materials:

Aluminium Alloy (AlMgSi0, 5 F 25)

Finish:

Clear Anodized
Thread Size:

M8
Area Moment of Inertia Ix (in cm4):

5.95
Area Moment of Inertia Iy (in cm4):

5.95

Additional information

Weight 1.23 kg
