I8 40RR60 (Cut Length)

29.00 / m

I8 40RR60 (Cut Length)

Product Price
Please note:
An additional cutting cost of €3.50 an item is added in the basket.
I8 40RR60X , , , ,

Description

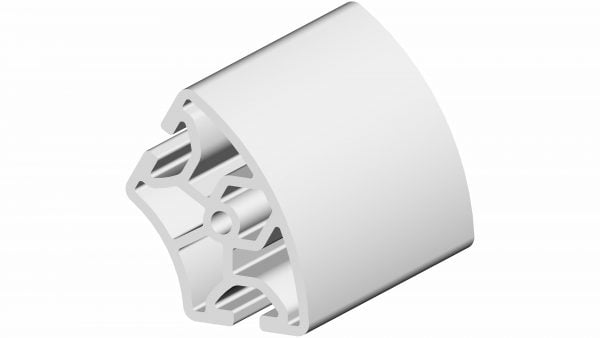

40mm by 40mm curved profile with a 60° outer radius and 60° inner radius, available in a 6m length or cut to your required length. This is a cut length. For a full 6m length click here.

Please note there is a 5-7 working day lead time on this profile.

To download a PDF drawing of I8 40RR60 click here

To request a CAD file please email sales@quantum-3.com

Specification

Materials:

Aluminium Alloy (AlMgSi0, 5 F 25)

Finish:

Clear Anodized

Thread Size:

M8

Area Moment of Inertia Ix (in cm4):

35.44

Area Moment of Inertia Iy (in cm4):

22.89

Additional information

Weight 2.86 kg
