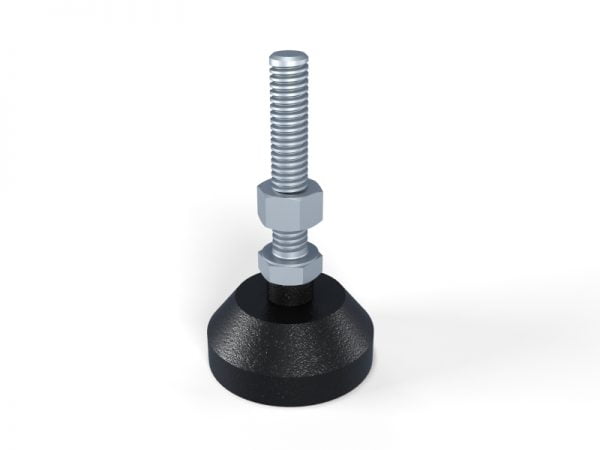

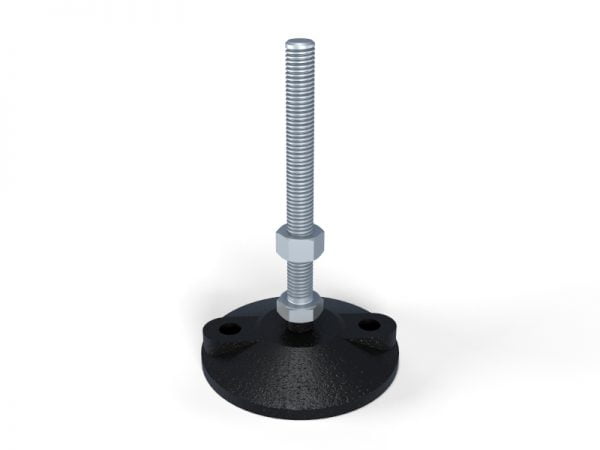

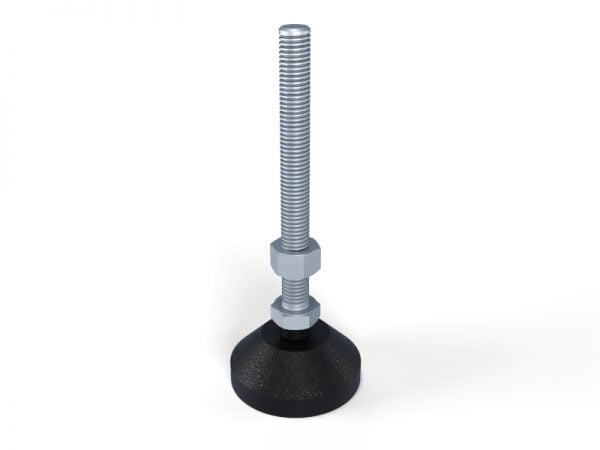

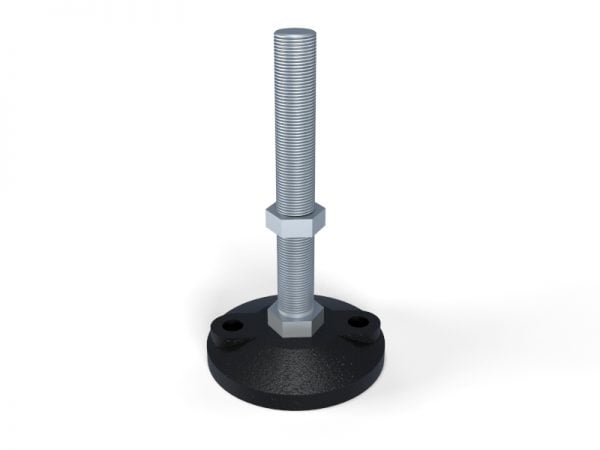

Accessory Adjustment Foot

5.3417.14

Adjustment feet to stabilise structures, machinery and equipment. These can be purchased in 40, 50, 80 and 100 base diameter.

SKU: AAFX Categories: ,
Clear

Description

Accessory Adjustment foot are used to provide a secure, steady base for any machine frame or structure. Made from steel, our height compensating, self-aligning leveling feet reduce the risk of tilting. The integrated anti-slip plates also prevent unwanted movement. We stock a range of sizes, including 40, 50, 80 and 100 base diameters, allowing you to choose the adjustment feet to best suit the weight, size and shape of your machine.


Downloads

To download a CAD drawing of AAF click below –

AAF 40

AAF 50

AAF 80

AAF 100

To download a PDF drawing of  AAF click below –

AAF-40

AAF-50

AAF-80

AAF-100

Specification

Materials:

Base – Glass-fibre reinforced polyamide (PA) Thread Rod – Steel Please note all screws and fasteners are zinc plated steel.

Finish:

Zinc Plated

Additional information

Weight N/A
