Connector Corner Quadrant 40

5.438.03

Corner quadrant connector which can be purchased on its own or with a square or quadrant end cap

Clear
CCQ40P , ,

Description

These Connector Corner Quadrant 40 can be used in constructions to connect up to three lengths of aluminium profile. They are made from zinc alloy ZP0410 and have a cast iron finish. They can be bought separately or in a kit. There are two kit options; one with a curved quadrant endcap or one with a cubed square endcap. Both kits come with the necessary screws for assembly.


Downloads

To download a PDF drawing of CCQ 40 click below –

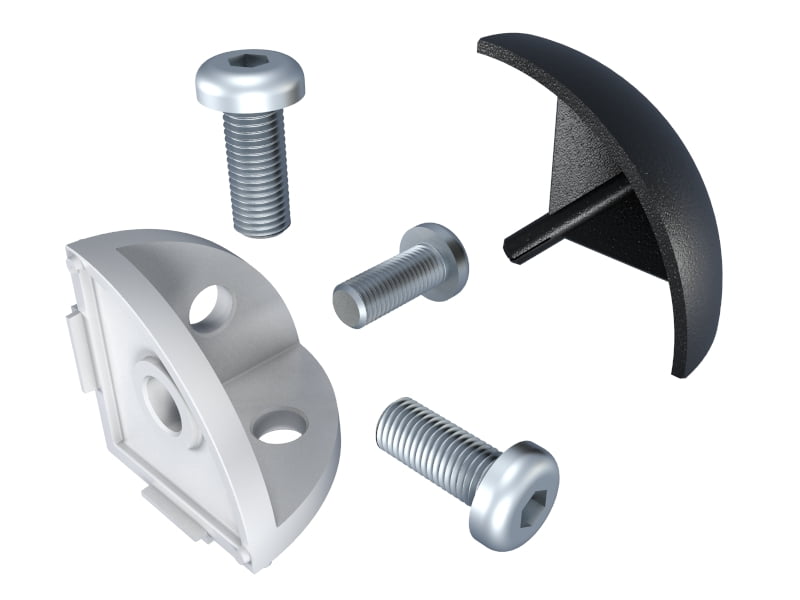

CCQ 40 Q

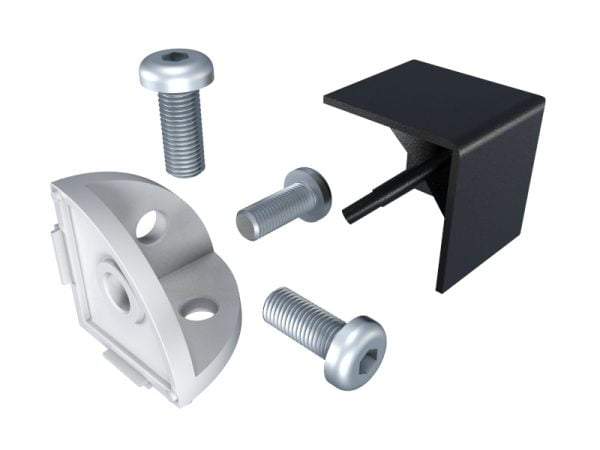

CCQ 40 S

To download a CAD drawing of CCQ 40 click below –

CCQ 40 Q

CCQ 40 S

Specification

Finish:

Deburred (Cast Zinc)

Mounting Screw:

M8

Additional information

Weight N/A
