Accessory Base Plate 100100

22.85

Base plate 100100 available with centre marked or with M20 thread

Clear
ABP100100P , ,

Description

Our base plates 100100 can be attached to the end of our extruded aluminium profiles. We use these base plates to mount leveling feet to the profiles, thereby increasing the stability of the structure. All base plates come with a zinc plated finish and are made from steel. This base plate can be used on our 100X100 standard profile. You can purchase the Accessory Base Plate 100100 with the centre marked or with an M20 thread.


Downloads

To download a CAD drawing of ABP 100100 click below –

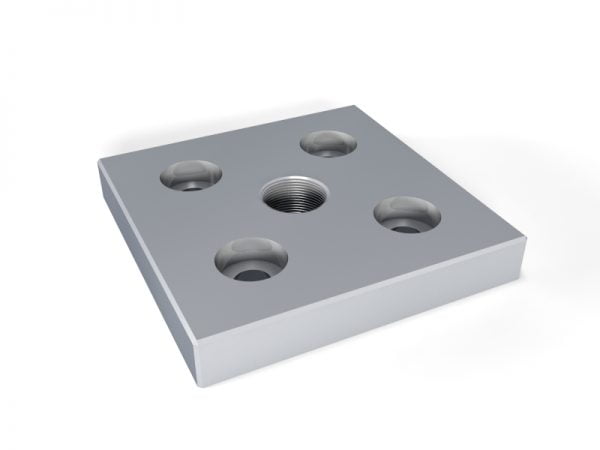

ABP 100100 M20

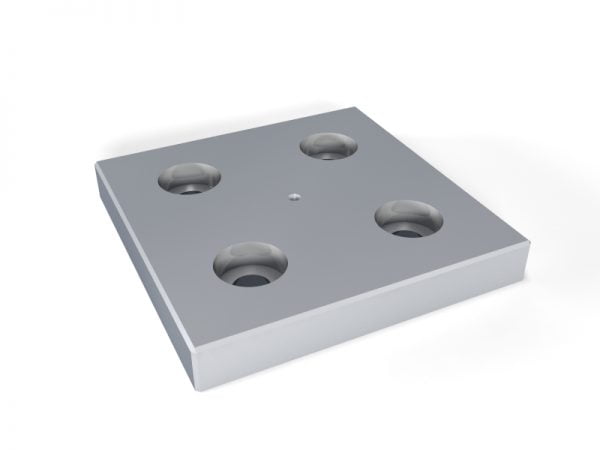

ABP 1001001

To download a PDF drawing of ABP 100100 click here

Specification

Materials:

Steel

Finish:

Zinc plated

Thread Size:

M20 (Other thread size available on request)

Additional information

Weight 1.05 kg
Options

,
